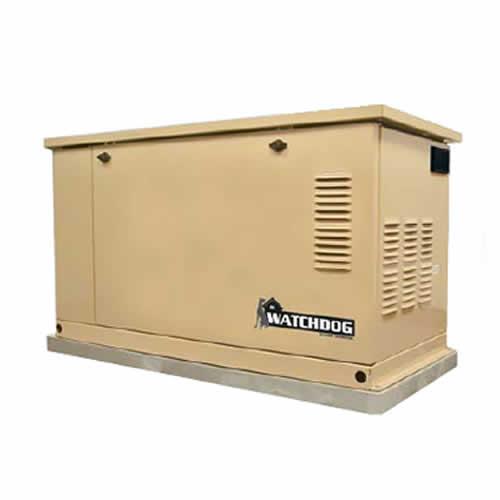

Model: 15 KW Generac Watchdog Home Generator Transfer Switch is Included! There are 10, 12 and 25 KW models also available! | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Model 4390 15 kW Air Cooled Emergency Standby Generator |
| Model Number | 4390 |
| Rated Power LP (kW) | 15** |
| Rated Power NG (kW) | 13 |
| Voltage @ 60 Hz | 120/240 |
| Phase | Single |
| Frequency | 60 Hz |
| Amps LP | 125.0/62.5 |
| Amps NG | 108.3/54.2 |
| Engine/Alternator RPM | 3600/3600 |
| Engine | 992 cc. |
| 30 HP | |
| Generac OHVI | |
| V-Twin | |
| EPA/CARB Certified | Yes |
| Fuel | Natural Gas/ |
| LP Vapor | |
| Engine Cooling | Air |
| UL2200 | Yes |
| CSA Listed | Yes |
| Main Line Circuit Breaker | 60 Amp |
| Dimensions (L" x W" x H") | 48 x 24 x 28-1/4 |
| Unit Wt. (lbs.) | 487 |
| Transfer Switch | Included |
| Start/Stop Control | Cyclic cranking: 7 seconds on, 7 seconds rest. 90 seconds overcrank protection. |
| Automatic Low Oil Shutdown | Standard |
| Overspeed Shutdown | Standard, 72 Hz |
| Overcrank Protection | Standard |
| Automatic Voltage Regulator with Over-Voltage Protection | Standard |
| Engine Warmup | 10 seconds |
| Engine Cool-Down | 1 minute |
| Safety Fuse | Standard |
| Starter Lockout | Starter cannot re-engage until 5 seconds after the engine has stopped |
| 2 Amp Timed Trickle Battery Charger | Standard |
| Auto Switch | Utility failure/7 day exercise |
| Off Switch | Stops unit. Power is removed. Control and charger still operate |
| Manual / test | Start with starter control, unit stays on. If utility fails,transfer to load takes place |
Transfer Switch
| No. of Poles | 2 |
| Current Rating (amps) | 100 |
| Voltage Rating (VAC) | 250 |
| Utility Voltage Monitor (fixed) Pick-up Drop out | 80% 60% |
| Return to Utility | Approx. 13 seconds |
| Exercises 7 minutes weekly | Standard |
| UL Listed | Standard |
| Dimensions (H" x W" x D") | 26.5 x 12.5 x 7 |
